Precision Miniature Case

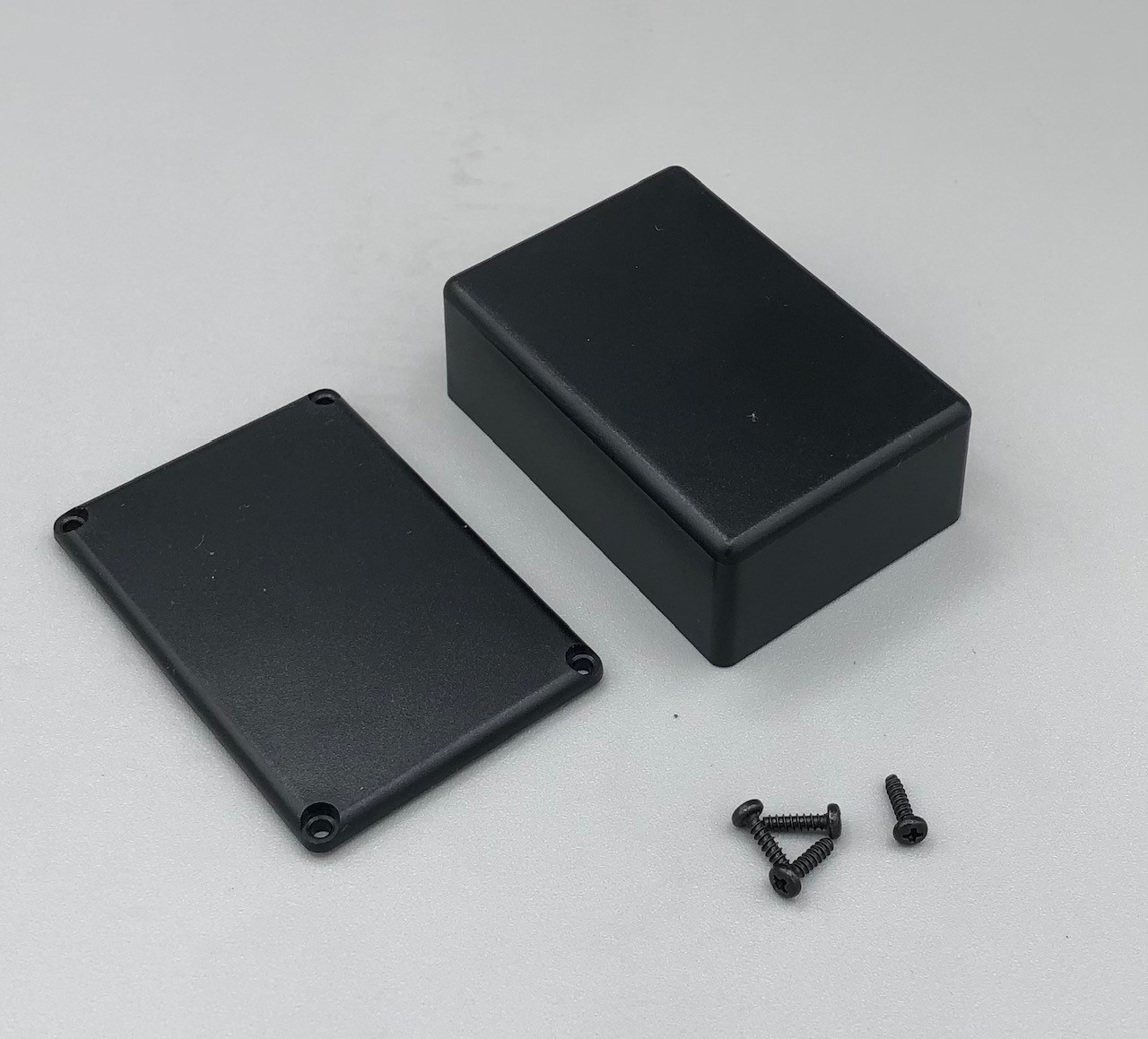

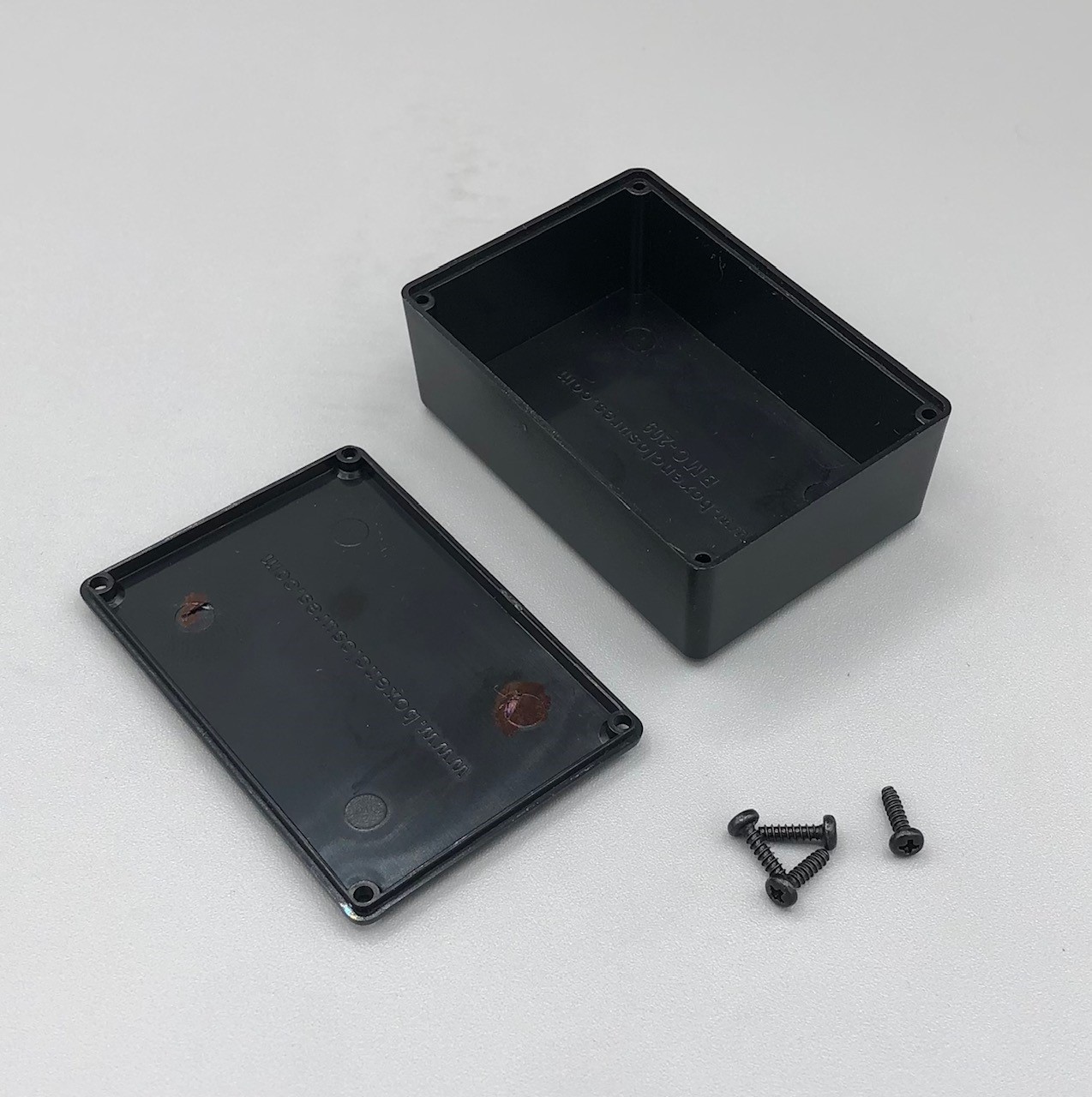

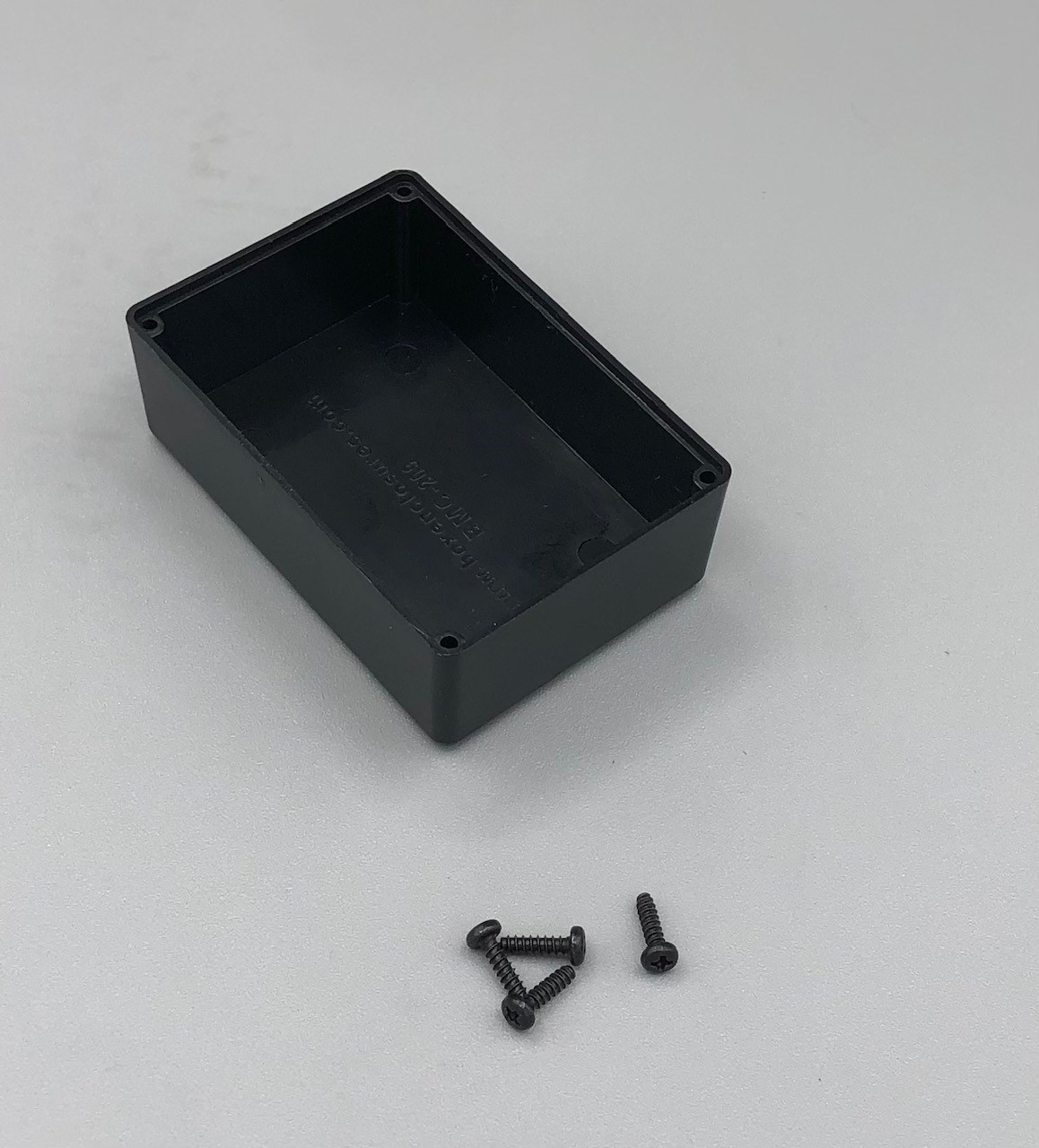

ABS enclosure, screw together, black, internal dimensions 1.00 x 0.67 x 0.41". 4 No. 2 self tapping assembly screw included. Screw bosses intrude into box 0.12 x 0.12" in each corner, wall thickness .07". Package of ten.

- Material: ABS, other materials available

- Fire Rating: UL 94 HB, UL 94 VO optional

- Finish: Very fine texture
- Features a screw on bottom panel

Technical Drawings:

Product Details:

Part Number: BMC-204-10

Size in Inches: 0.41L x 0.67W x 1.0H"

Size in mm: 10L x 17W x25H mm

Battery Type: N/A

Weight-Lbs: 0.1

Material: ABS, UL 94 HB rated

RoHS Compliant: Yes

Protection Class: IP62 / NEMA 2

In Stock - Ships in 24 Hours or Less

Price Brackets:

Quantity	Price
1 - 99	$6.00
100 - 249	$4.80
250 - 499	$4.38
500 - 999	$3.96
1000 -2500	$3.54

Description

Part Number

BMC-204-10

Product Name

Precision Miniature Case

Battery Type

N/A

Color

Black

Size

0.41x0.67x1"

Material

ABS, UL 94 HB rated

Weight in Pounds

0.1

Technical Drawings:

Price Brackets

Quantity	Price
1 - 99	$6.00
100 - 249	$4.80
250 - 499	$4.38
500 - 999	$3.96
1000 -2500	$3.54

Additional Information

Weight	0.1 lbs
Dimensions	0.41L x 0.67W x 1.0H"
Meterial	ABS, UL 94 HB rated
