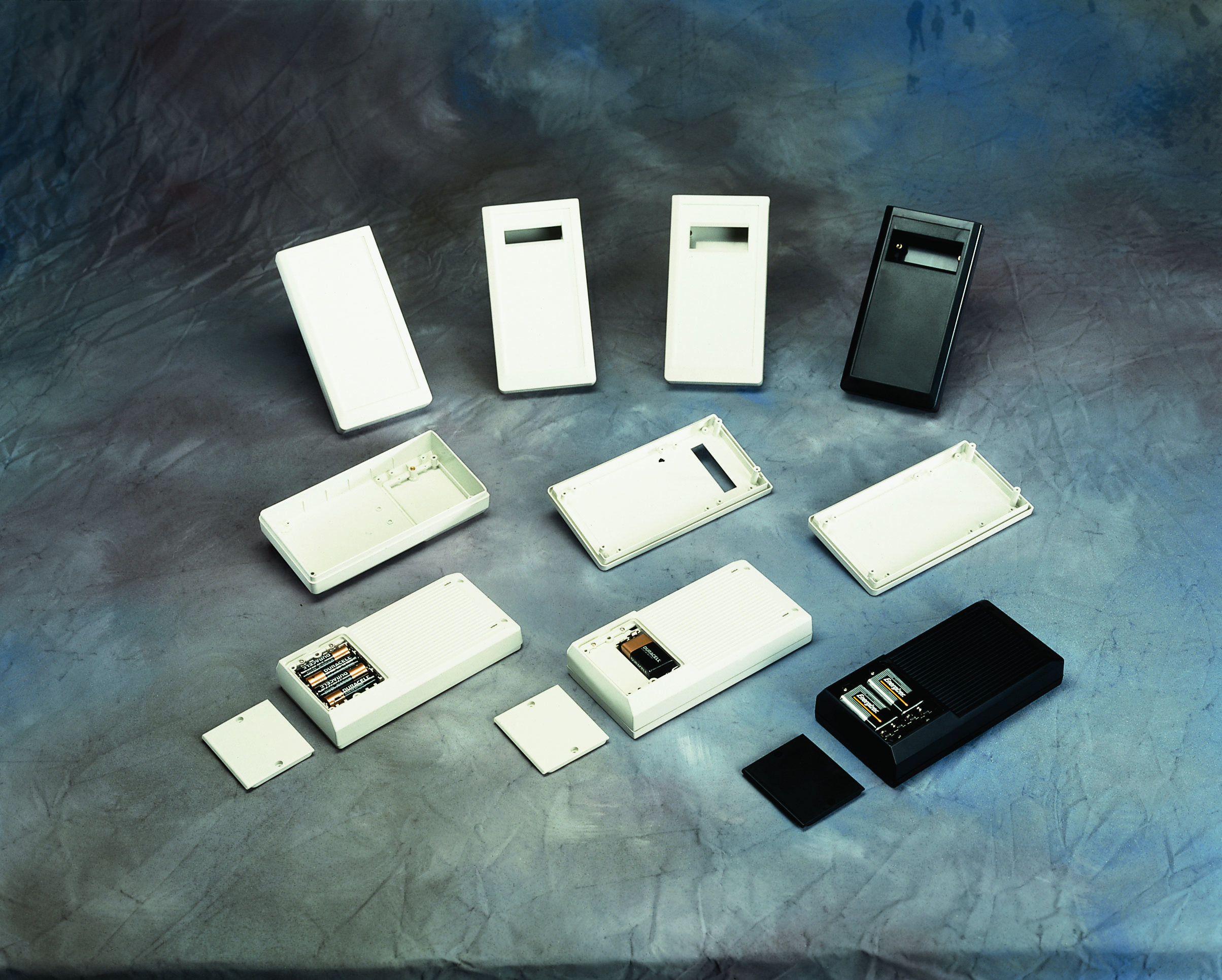

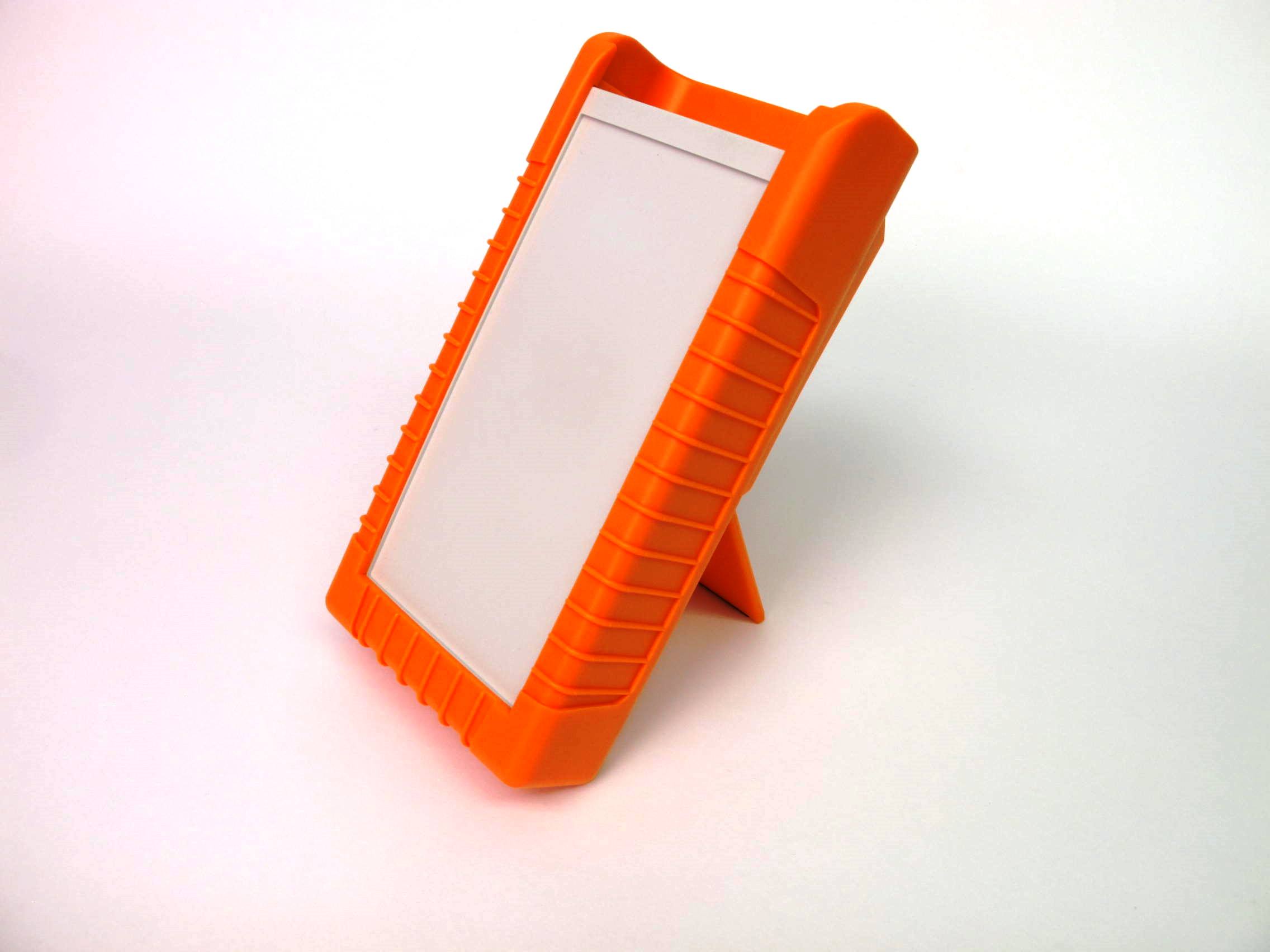

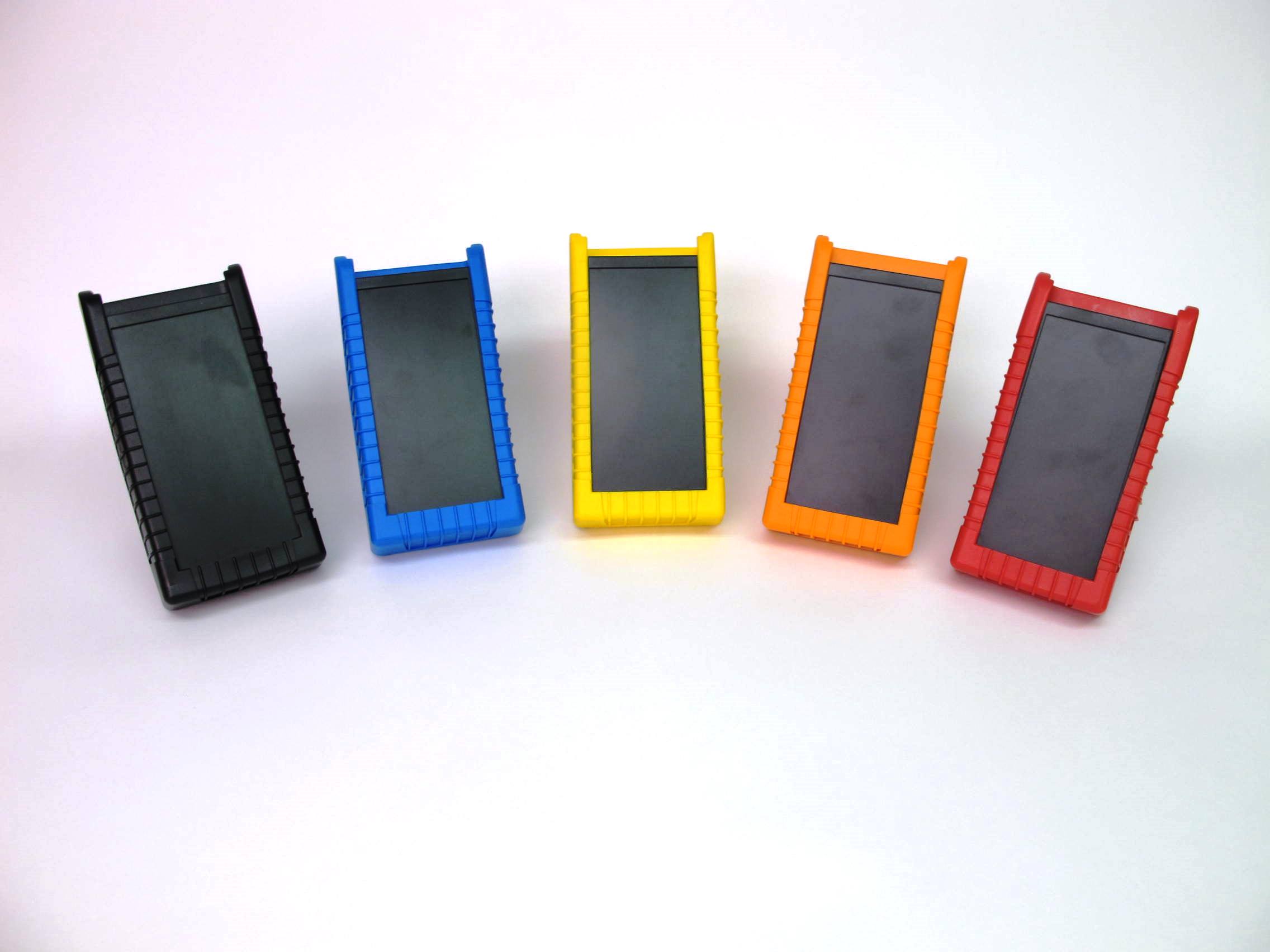

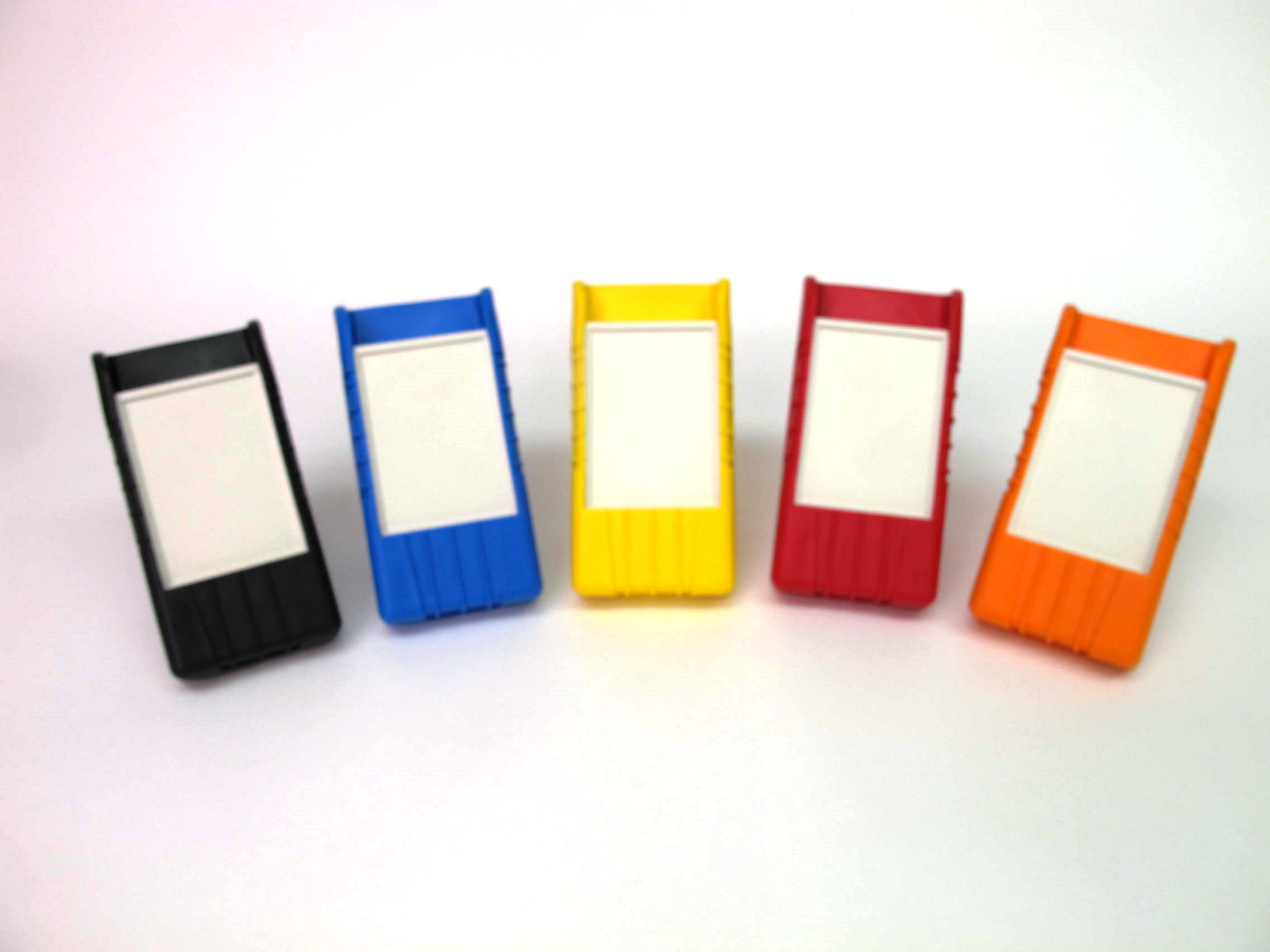

Mobile Box Medium - 4AA, 1 9V or 2 9V Batt Holder Optional, No Battery
Window Version # | LCD window Size | |
Version 1 | None: Part # MBM-107 / 109 - Has blank recessed top surface for membrane keypad |  |
Version 2 | Part # MBM-207 / 209 - 2.36" x 0.59" for 2 x 16 LCD module | |
Version 3 | Part # MBM-307 / 309 - 2.44" x 0.51" for 2 x 16 compact LCD module | |
Version 4 | Part # MBM-407 / 409 - 2.37" x 0.95" for 4 x 16 LCD module | |
Version 5 | Part # MBM-507 / 509 2.87" x 1.04" for 4x20 LCD module | |
Technical Drawings:
Product Details:
Part Number: MBM
Size in Inches: 7.68L x 3.98W x 1.73H"
Size in mm: 195L x 101W x44H mm
Battery Type: 4AA, 9V, 2-9V, 2AA or None
Weight-Lbs: 0.2
Battery Configuration: None
Material: ABS: UL 94 HB or UL 94 VO
RoHS Compliant: Yes
Protection Class: IP62 / NEMA 2
Price Brackets:
| Quantity | Price |
|---|---|
| 1 - 99 | $14.00 |
| 100 - 249 | $13.20 |
| 250 - 499 | $10.40 |
| 500 - 999 | $8.00 |
| 1000 -2500 | $7.50 |
Description
| Part Number | MBM | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Product Name | Mobile Box Medium - 4AA, 1 9V or 2 9V Batt Holder Optional, No Battery | ||||||||||||
| Battery Type | 4AA, 9V, 2-9V, 2AA or None | ||||||||||||
| Color | Black | ||||||||||||
| Size | 7.68x3.98x1.73" | ||||||||||||
| Material | ABS: UL 94 HB or UL 94 VO | ||||||||||||
| Weight in Pounds | 0.2 | ||||||||||||
| Technical Drawings: |
|
||||||||||||
| Price Brackets |
|
Additional Information
| Weight | 0.2 lbs |
|---|---|
| Dimensions | 7.68L x 3.98W x 1.73H" |
| Meterial | ABS: UL 94 HB or UL 94 VO |
