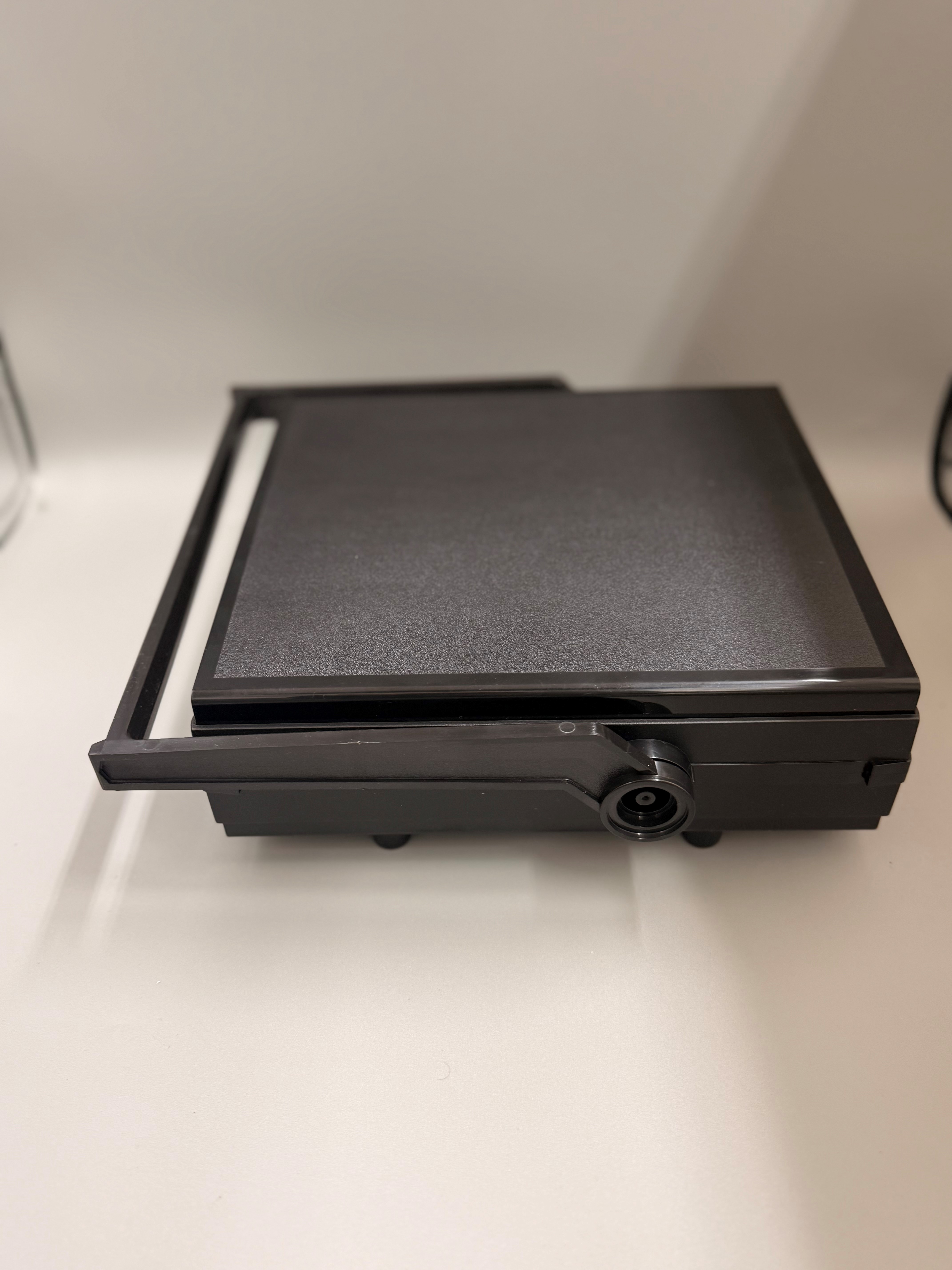

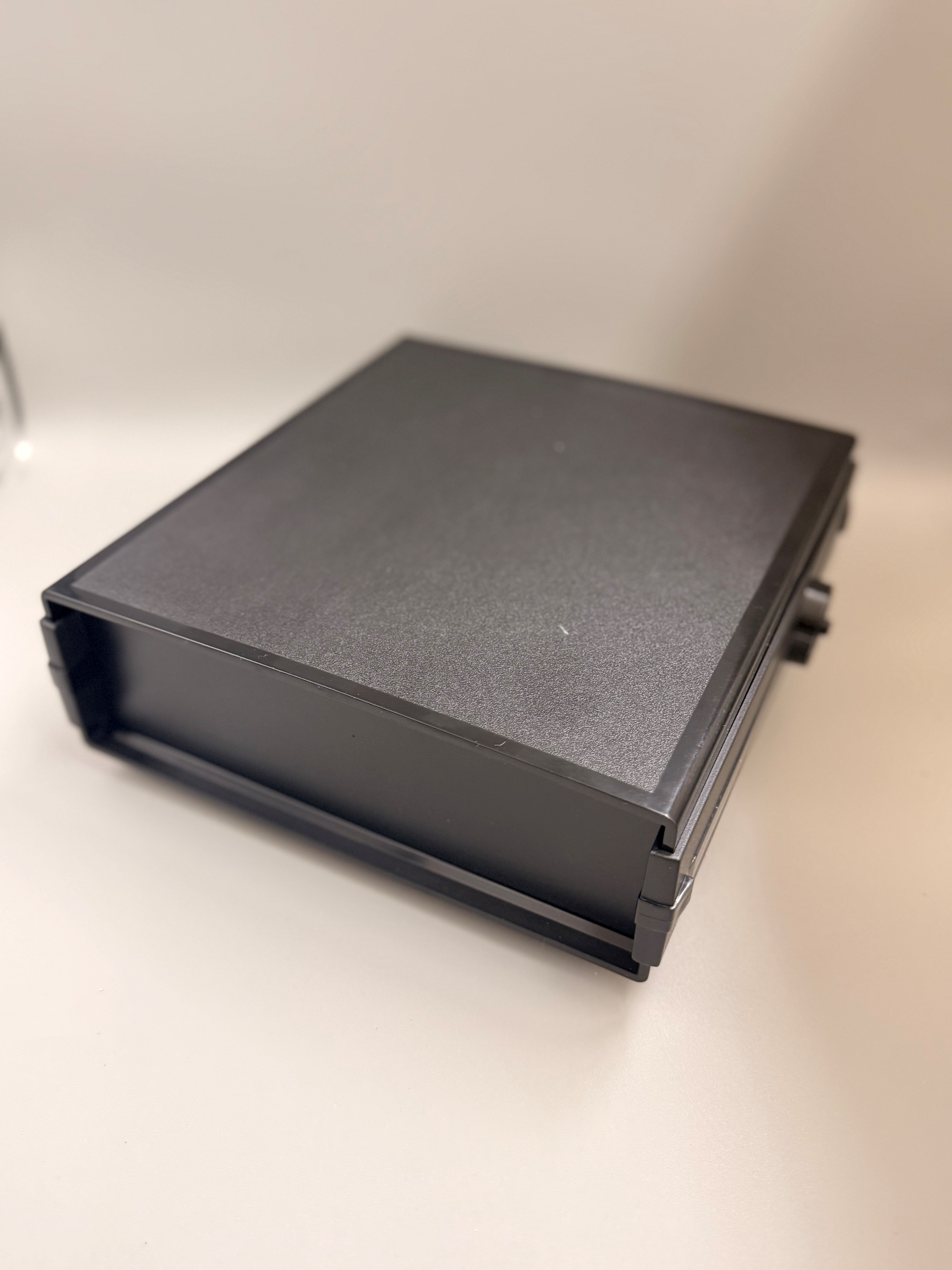

Carry Tech Enclosure

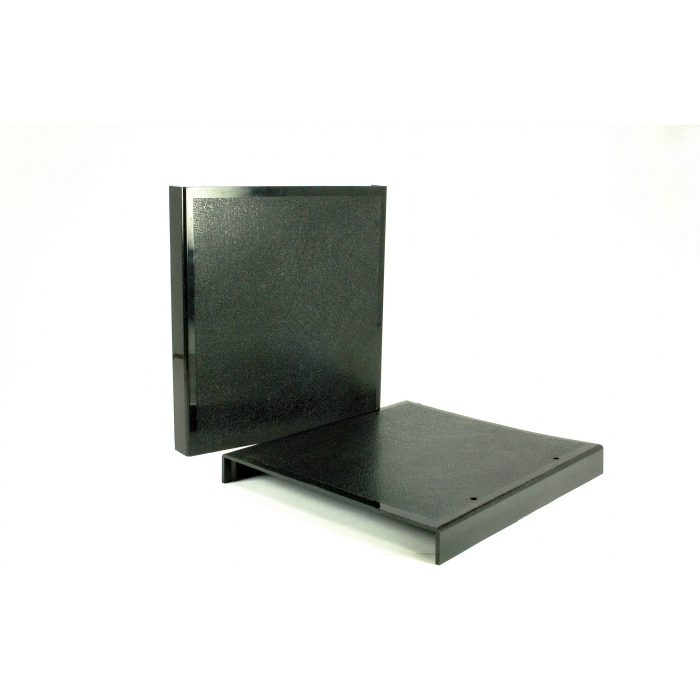

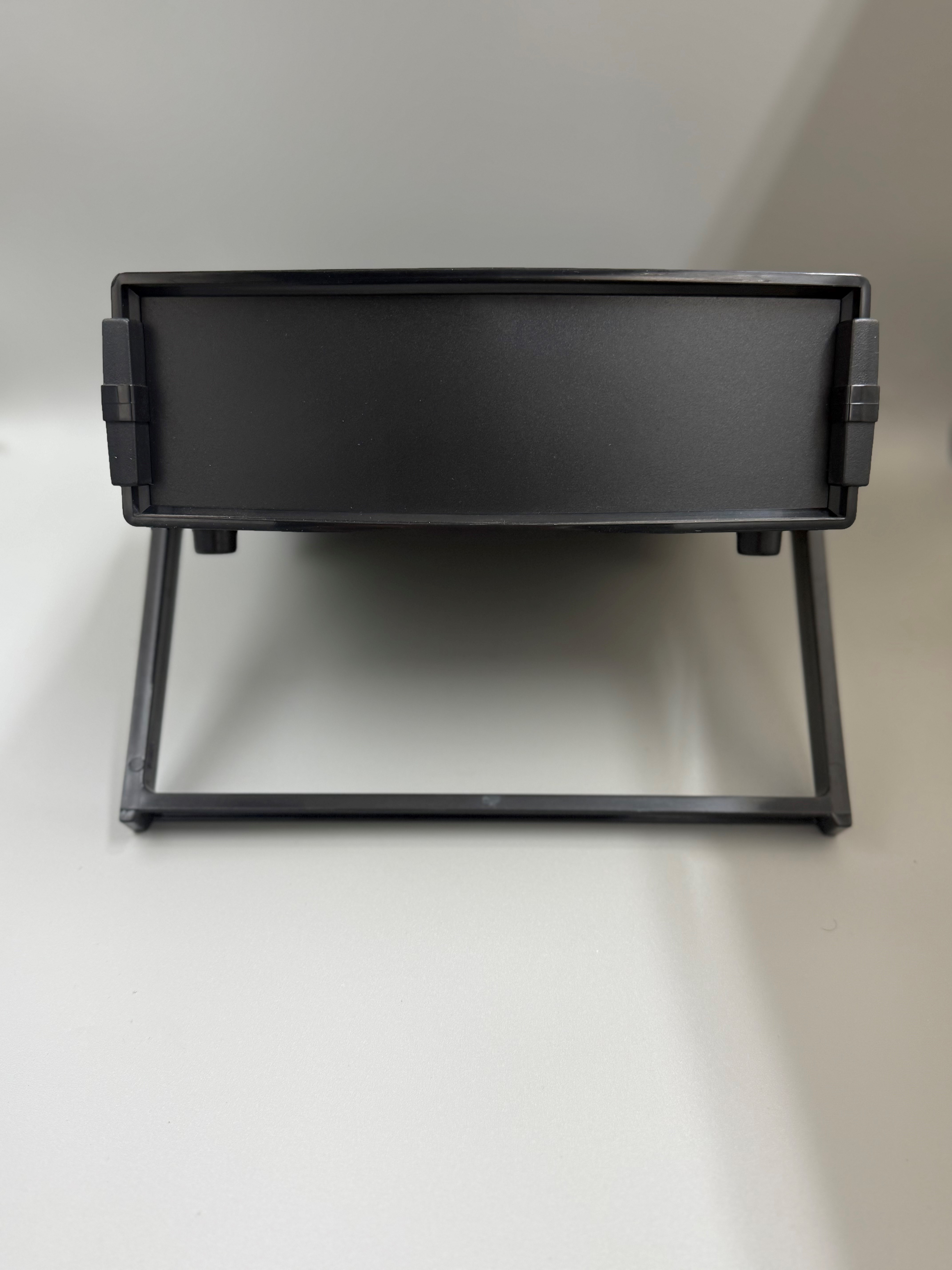

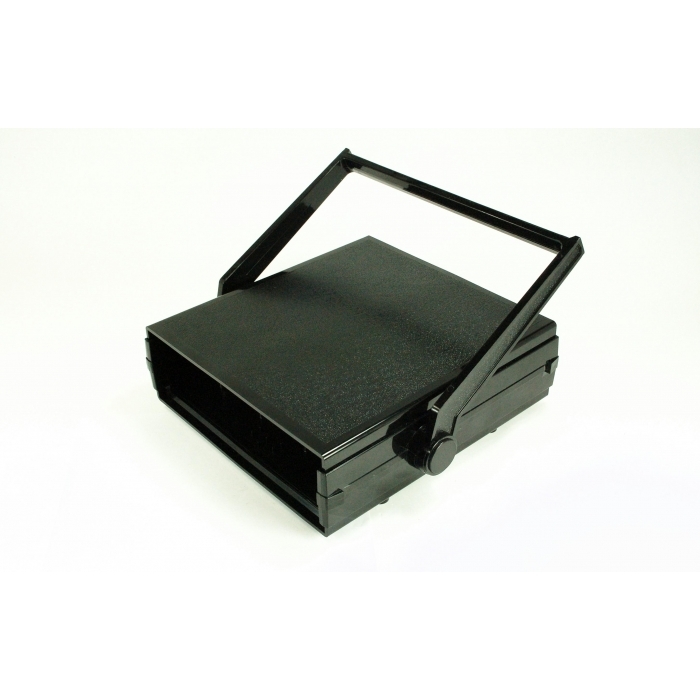

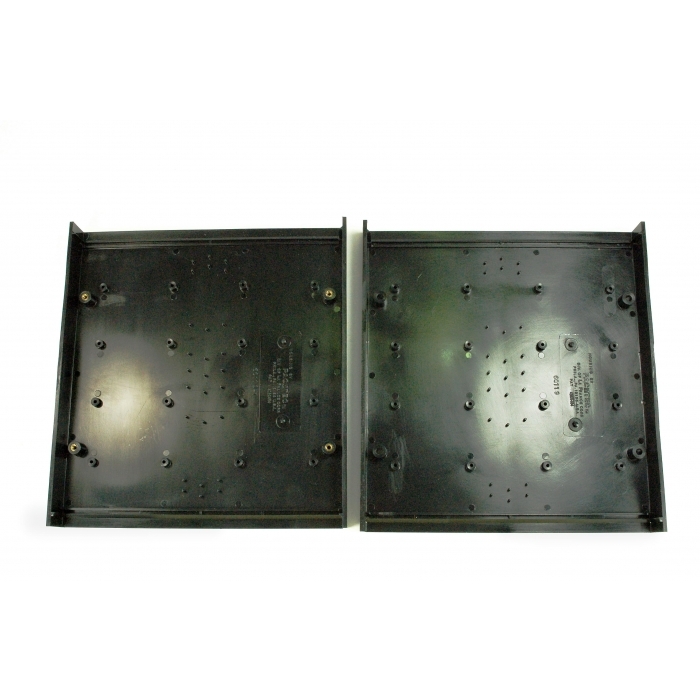

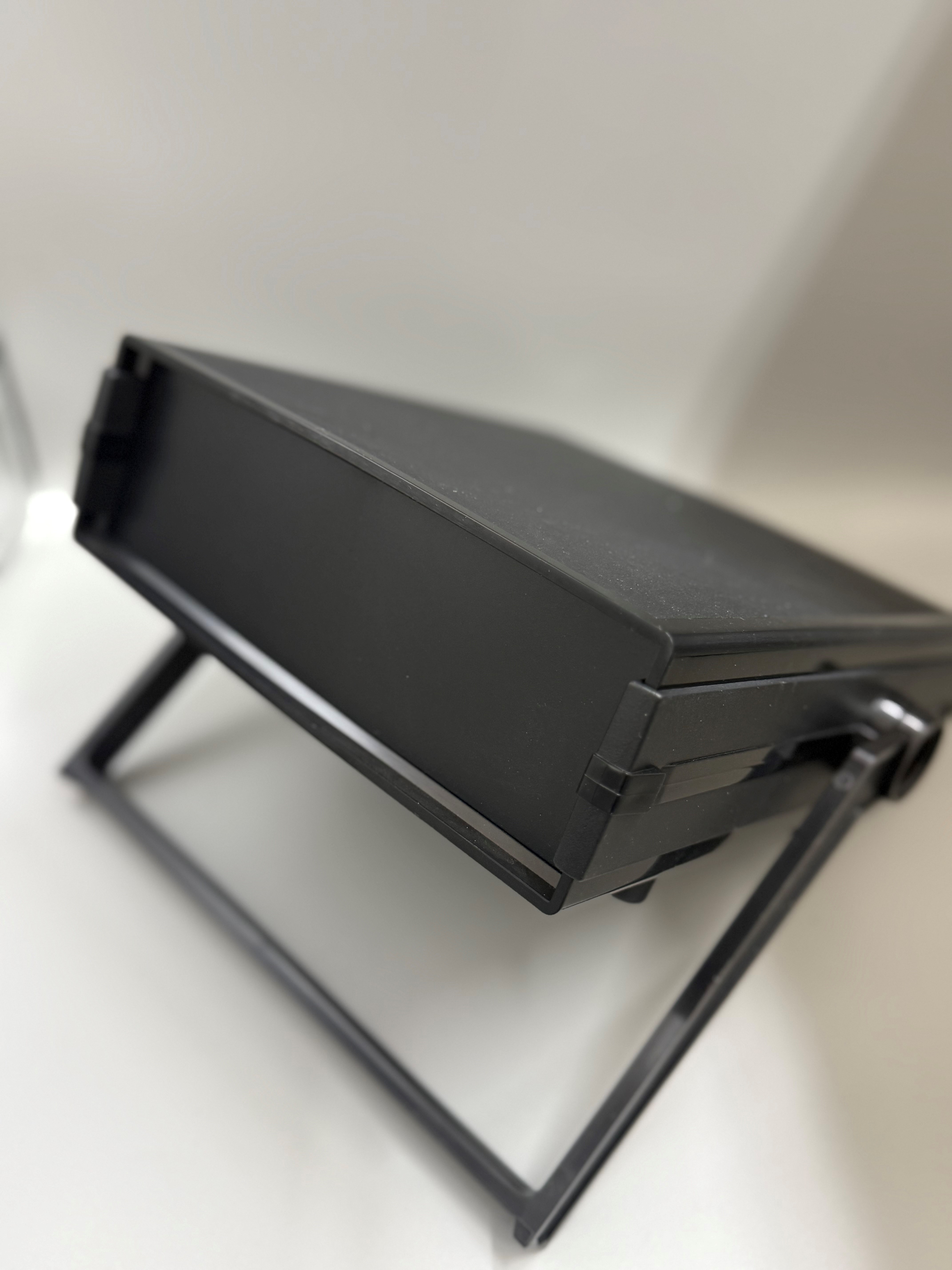

Modular enclosure which by changing front, and rear panels, spacers and side panels can accommodate six different heights from 2.44" to 3.69". Capable of housing a portable 3.4" drive with power supply. Suitable project enclosure for Computer, Electronic, Test and Medical Equipment. Adjustable Handle / Doubles as a Stand. Note: Front and rear panels not included. (Typically 8" wide and up to 2.56" High)

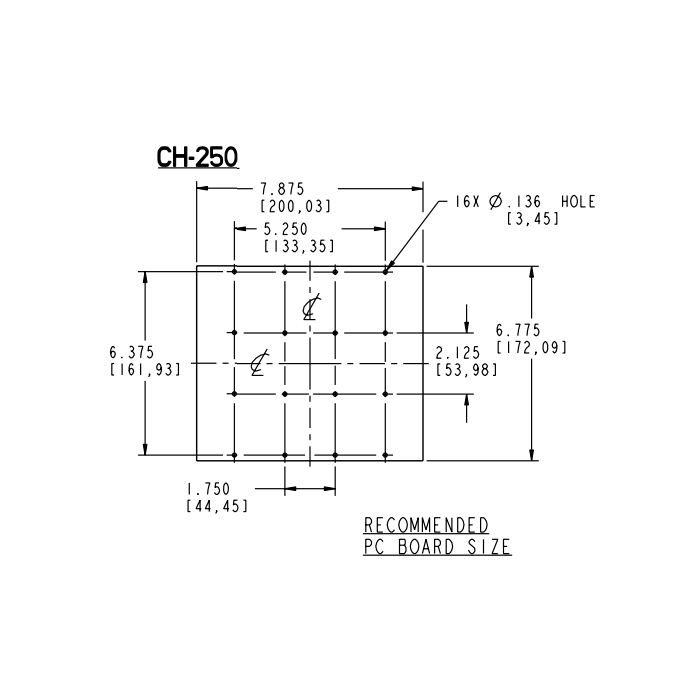

Technical Drawings:
Product Details:
Part Number: CAR-01-BK
Size in Inches: 8.50L x 9.25W x 2.94H"
Size in mm: 235L x 215W x74H mm
Battery Type: N/A
Weight-Lbs: 2
Material: ABS, UL 94 HB rated
RoHS Compliant: Yes
Protection Class: IP62 / NEMA 2
Price Brackets:
| Quantity | Price |
|---|---|
| 1 - 5000 | $18.50 |
Description
| Part Number | CAR-01-BK | ||||
|---|---|---|---|---|---|
| Product Name | Carry Tech Enclosure | ||||
| Battery Type | N/A | ||||
| Color | Black | ||||
| Size | 8.5x9.25x2.94" | ||||
| Material | ABS, UL 94 HB rated | ||||
| Weight in Pounds | 2 | ||||
| Technical Drawings: |
|
||||
| Price Brackets |
|
Additional Information
| Weight | 2 lbs |
|---|---|
| Dimensions | 8.50L x 9.25W x 2.94H" |
| Meterial | ABS, UL 94 HB rated |
