Precision Miniature Case

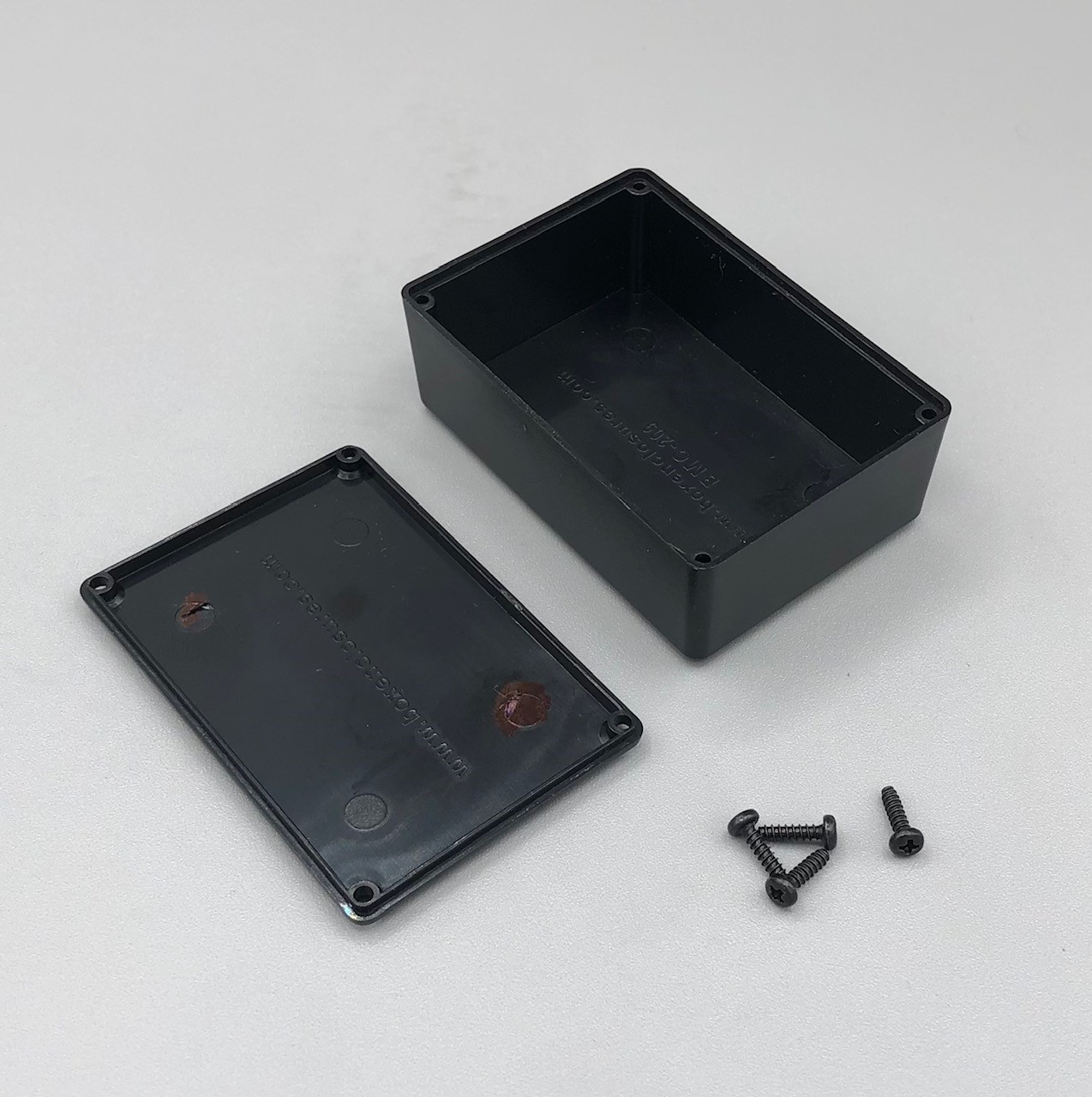

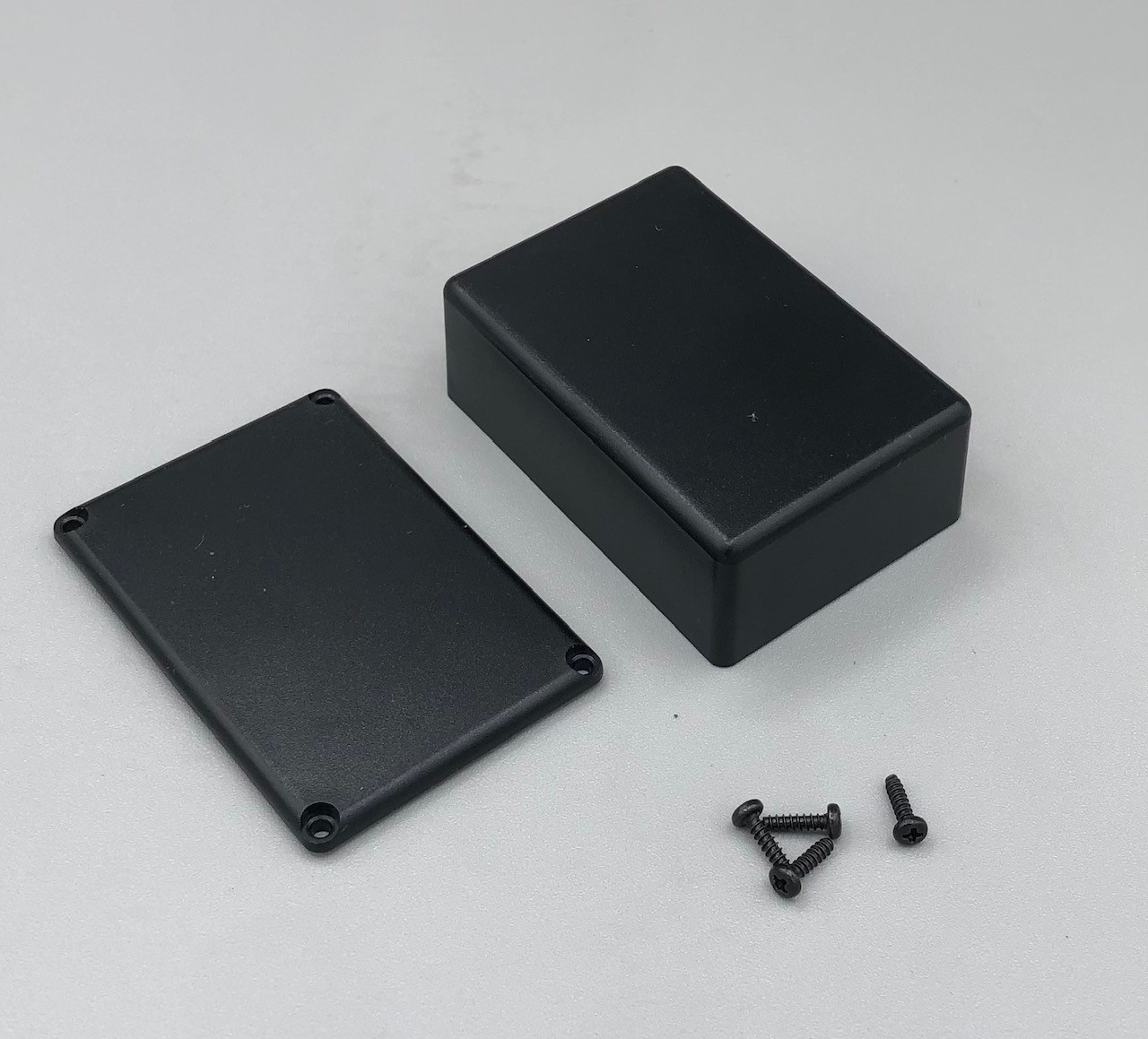

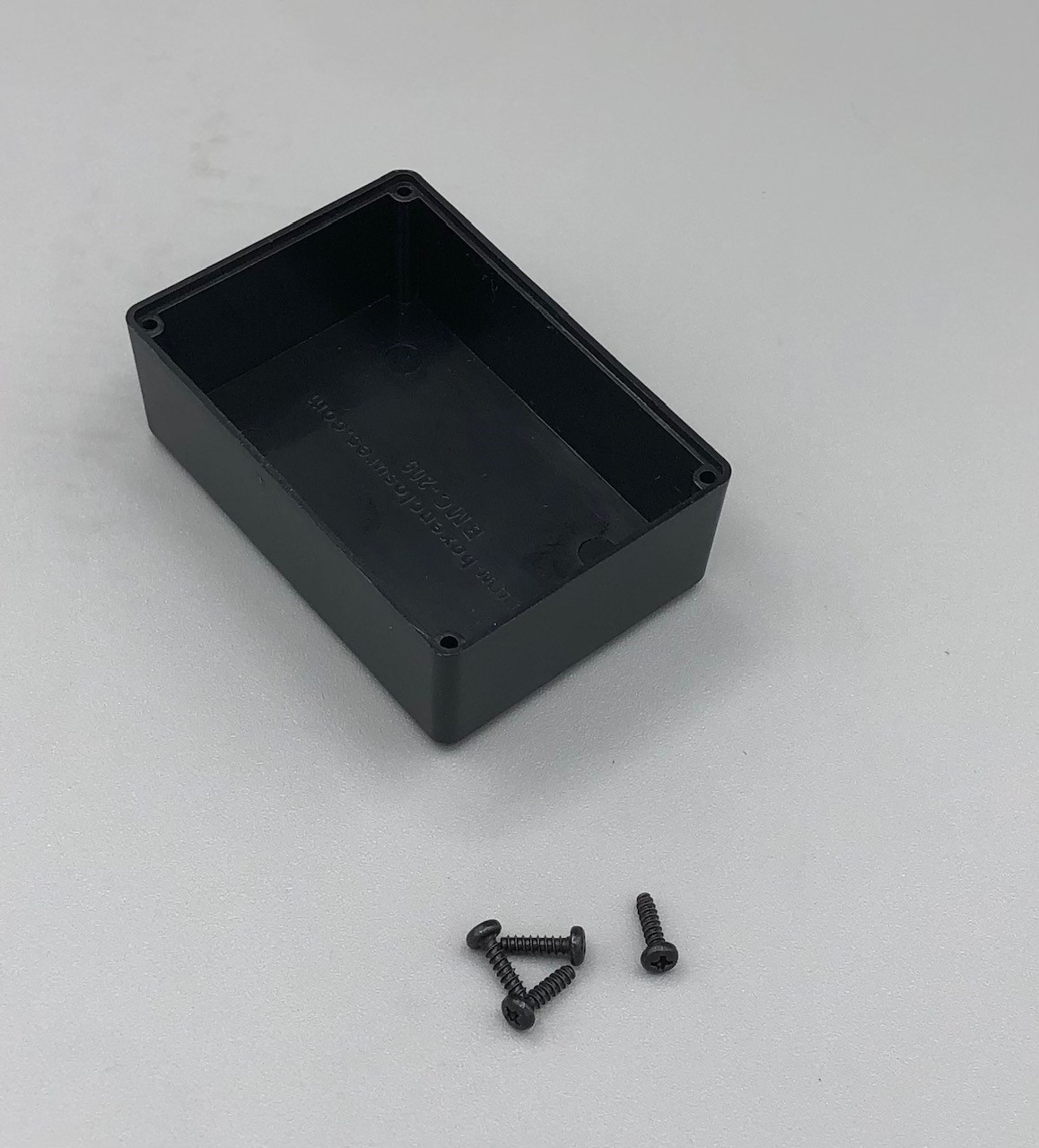

ABS enclosure, screw together, black, internal dimensions 1.30 x 0.57 x 0.35". 4 No. 2 self tapping assembly screw included. Screw bosses intrude into box 0.12 x 0.12" in each corner, wall thickness .07". Package of ten.


- Material: ABS, other materials available

- Fire Rating: UL 94 HB, UL 94 VO optional

- Finish: Very fine texture
- Features a screw on bottom panel

Technical Drawings:

Size: 0.35L x 0.57W x 1.30H"

Part Number: BMC-203L-10

Battery Type: N/A

Weight: 1.00

Price Brackets:

Quantity Price
1 - 99 $23.65
100 - 249 $18.92
250 - 499 $17.26
500 - 999 $15.61
1000 -2500 $13.95

Description

Part NumberBMC-203L-10
Product NamePrecision Miniature Case
ColorBlack
Size1.30x0.57x0.35"
Weight in Pounds1.0
MaterialABS
Technical Drawings:

Price Brackets
QuantityPrice
1 - 99$23.65
100 - 249$18.92
250 – 499$17.26
500 - 999$15.61
1000 – ¥$13.95

Additional Information

Weight 1.00 lbs
Dimensions 0.35L x 0.57W x 1.30H"

Why Box Enclosures?

Box Enclosures, Inc. is a full service designer, manufacturer and supplier of injection molded plastic enclosures, handheld electronic enclosures, instrument cases and anodized extruded aluminum enclosures. We produce a complete line of off-the-shelf injection molded enclosures, semi-custom and custom hand-held enclosures and cases.
