BEX Series 1 Enclosures
Aluminum Enclosures
Versatile anodised aluminium extruded box section with integral card slots in four profiles and a range of standard lengths. Optional mounting lugs and end plates available.
Services Available:
Custom end plates,
CNC Machining,
Non-standard lengths,
Custom lengths available!
Color Options:
Black, Silver, Red, Green, Blue,Gold
Product List
BEX Series 1 Enclosures
| Product Names | Size | Color | Battery Type | Part Number |
|---|---|---|---|---|
| BEX SERIES 1 ENCLOSURE | 1.57L x 2.50W x 1.18H" | Black, Silver, Blue, Gold, Red, Green | N/A | B1-040 |
| BEX SERIES 1 ENCLOSURE | 3.15L x 2.50W x 1.18H" | Black, Silver, Blue, Gold, Red, Green | N/A | B1-080 |
| BEX SERIES 1 ENCLOSURE | 4.72L x 2.50W x 1.18H" | Black, Silver, Blue, Gold, Red, Green | N/A | B1-120 |
| BEX SERIES 1 ENCLOSURE | 31.50L x 2.50W x 1.18H" | Black, Silver, Blue, Gold, Red, Green | N/A | B1-800 |

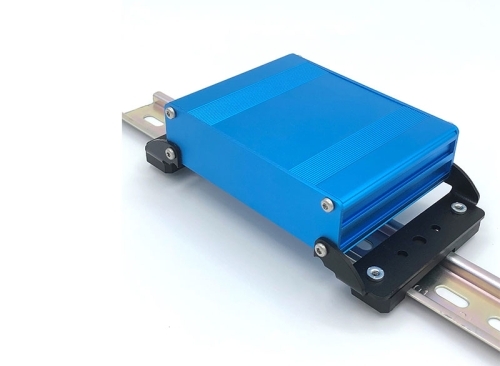

Mounting Flanges & DIN Rail Brackets
| Product Names | Size | Color | Battery Type | Part Number |
|---|---|---|---|---|
| DIN Rail Mounting Clip for All Mounting Brackets | 1.50L x 0.75W x 0.02H" | Black | N/A | DMC-01 |
| 220 mm High Profile Mounting Bracket - DIN Clip Optional | 8.66L x 1.10W x 0.98H" | Black, Silver, Blue, Gold, Red, Green | N/A | BRV220 |
| 160 mm High Profile Mounting Bracket - DIN Clip Optional | 6.49L x 1.10W x 0.98H" | Black, Silver, Blue, Gold, Red, Green | N/A | BRV160 |
| 120 mm High Profile Mounting Bracket - DIN Clip Optional | 4.92L x 1.10W x 0.98H" | Black, Silver, Blue, Gold, Red, Green | N/A | BRV120 |
| 80 mm High Profile Mounting Bracket - DIN Clip Optional | 3.34L x 1.10W x 0.98H" | Black, Silver, Blue, Gold, Red, Green | N/A | BRV080 |
| 220 mm Low Profile Mounting Bracket DIN Clip Optional | 8.66L x 1.10W x 0.47H" | Black, Silver, Blue, Gold, Red, Green | N/A | BRH220 |
| 160 mm Low Profile Mounting Bracket - DIN Clip Optional | 6.49L x 1.10W x 0.47H" | Black, Silver, Blue, Gold, Red, Green | N/A | BRH160 |
| 120 mm Low Profile Mounting Bracket - DIN Clip Optional | 4.92L x 1.10W x 0.47H" | Black, Silver, Blue, Gold, Red, Green | N/A | BRH120 |
| 80 mm Low Profile Mounting Bracket - DIN Clip Optional | 3.34L x 1.10W x 0.47H" | Black, Silver, Blue, Gold, Red, Green | N/A | BRH080 |
| Dovetail mounting flange, slides into side of extrusion, 3.15 | 0.30L x 0.30W x 1.50H" | Black, Silver, Blue, Gold, Red, Green | N/A | MF80 |
| Dovetail mounting flange, slides into side of extrusion, 1.57 | 0.30L x 0.30W x 1.50H" | Black, Silver, Blue, Gold, Red, Green | N/A | MF40 |
Rubber End Caps
| Product Names | Size | Color | Battery Type | Part Number |
|---|---|---|---|---|
| Protective rubber end cap for Series1 extruded aluminum enclosures. Set of two. | 1.0L x 2.50W x 1.10H" | Black, Gray, Blue, Red, Green | N/A | EC1 |
End Plates
| Product Names | Size | Color | Battery Type | Part Number |
|---|---|---|---|---|
| End plate for Series 1, 1.18 H x 2.50 W | 1.18L x 2.50W x 0.15H" | Black, Silver, Blue, Gold, Red, Green | N/A | EP1 |
Sealing Kits
| Product Names | Size | Color | Battery Type | Part Number |
|---|---|---|---|---|
| Sealing kit for series 1 extrusions includes 2 gaskets and 8 washers | 1.20L x 2.50W x 0.15H" | Black | N/A | SK1 |
Extra End Plate Screws
| Product Names | Size | Color | Battery Type | Part Number |
|---|---|---|---|---|
| Torx Head M3 Screws - Pack of 400 | 1.0L x 0.10W x 0.10H" | Black, Silver | N/A | TS-400 |
| Screws, M3 TORX head thread forming, set of 8, for all BEX enclosures. | 1.0L x 0.06W x 0.10H" | Black, Silver | N/A | TS-008 |
